SkillNode

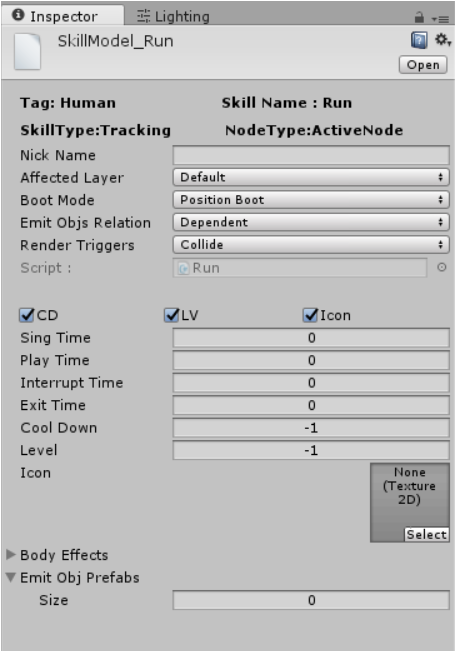

First have an overview of the SkillNode Inspector…

First , you may observe there are so many properties for a skill node.

SkillType and NodeType

I would explain SkillType and NodeType First.

When set SkillType == Directional, it means the EmitObj will only be emitted to certain position, if SkillType == Tracking,You should further make use of the EmitUpdate() to ensure tracking. See the skill example of ghostTrack in the wizard sample.

As mentioned before, if NodeType == ActiveNode,it can should be triggerd by your trigger script,else if NodeType == PassiveNode,it will be triggered automatically when it satisfies the condition you setted and it won’t reply to your command (it’s managed automatically by the SkillEquipManager ).

Then i would like to talk about the concept EmitObj and EmitObjPrefabs.

Take the wizard’s expamble again , the fireball emited may collide with other objects on its path to the Goblin, should it boom or not ?

EmitObj and related

EmitObjPrefabs && EmitObjTemps

EmitObjPrefabs and EmitObjTemps are both List<GameObjects>.

EmitObj can be any gameobject that are required to be emitted during the posscess EmitObjWithITweenof skill casting, such as particle system, meshes and so on.

EmitObjTemps are generated from EmitObjPrefabs each time the skill is being cast. EmitObjPrefabs should never be touched during skill casting, instead, EmitObjTemps is a better choice.

EmitObjTemps will not be automatically destoryed after a skill is casted in case that developers have any arrangement for them. If not , just destroy them manually in OnSkillExiting().

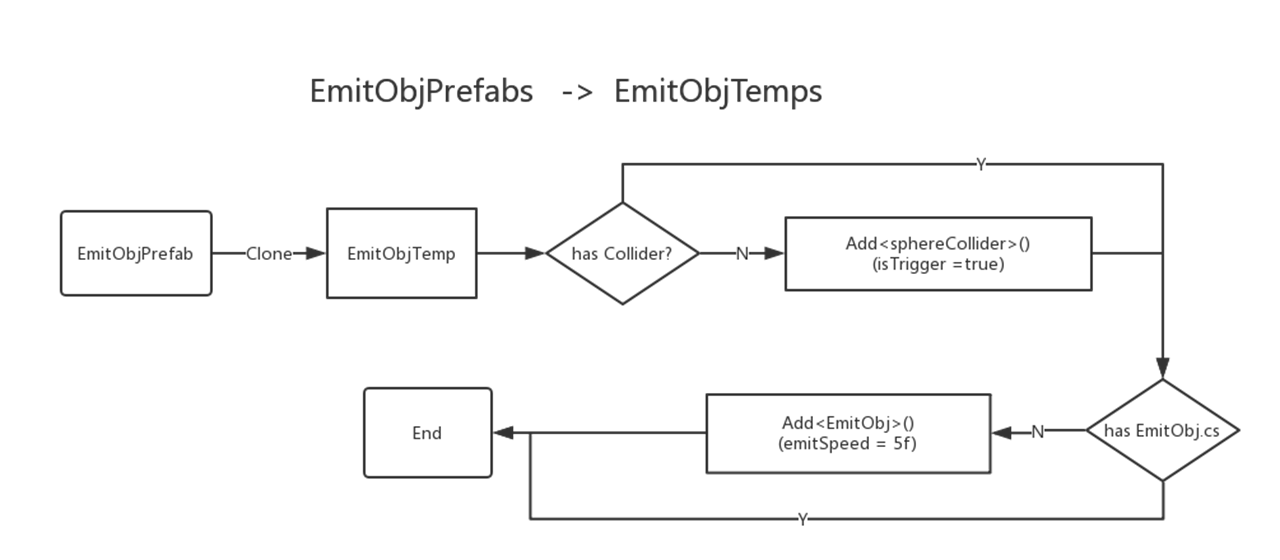

If corresponding EmitObjPrefabs do not have a Collider or EmitObj.cs attached, EmitObjTemps are guarenteed to have them by adding a SphereCollider(isTrigger = true) and EmitObj.cs.

Collider component attached on the EmitObjTemps are used to render objects that are affected by this skill. Collider renders objects based on its shape,location,AffectedLayer and RenderTriggers.

Currently only BoxCollider,Sphere Collider,BoxCollider2Dand CircleCollider are supported.

BootMode

If the BootMode ==Collision Boot , if the object is in the Affected Layer(e.g. Enemy), the fireball will be triggered and goes to next state OnSkillPlaying() for playtime,else if the BootMode ==Position Boot, it will not be triggered until it arrives the position it was setted (no matter it’s a directional skill or tracking skill)

So what’s EmitObj Relation?

EmitObjRelation

Take the wizard’s expamble again , the wizard may emit multiple fireball with different speed at the same time , now the problem is if one fireball was triggered,should the others be triggered?

If Dependent,that means one triggered all , one emitobj triggered will cause all emitobjs to be triggered.Else(Independent), one emitobj cannot be triggered by other emit obj.

Now what happened after one fireball was triggered?

The fireball will render the objs inside its collider( BoxCollider or SphereCollider),and takes them as the input objsto the OnSkillPlaying(List<GameObject> objs).This function will be called in every fixedUpdate for the length of PlayTime,as long as one emitobj is triggered.

RenderTriggers

Render Triggers is just saying wheather the EmitObjTemps will render triggers( not only collider) if it’s triggered. Collider is yes, Ignore is no, UseGlobal is not recommended.

When will the EmitObj be triggered?

Note that the emitobj can be triggered in two ways.

• BootMode == Position Boot and arrive the position endPos setted in GetComponent<EmitObj> attached.

Thus, endPos must be setted in EmitObj if it’s a collision boot.

• BootMode == Collision Boot and was triggered by some gameobject in AffectedLayer
• exceeds the emitTime setted in the EmitObj

The condition of entering OnSkillPlaying()

• one of the EmitObjTemps are triggered
• EmitObjPrefabs.size == 0

Other properties

Other properties’s meaning can be checked in this table.

Name	Meaning	Filled
NickName	Just for a easy recognition(e.g. NickName Boom for Skill fire)	Not Required
CD	CoolDown of this skill node	Not Required
LV	Level of this skill node	Not Required
Icon	Icon of this node	Not Required
Sing Time	time of executing OnSkillSinging()	Required
Play Time	time of executing ` OnSkillPlaying(List<GameObject> objs)`	Required
Interrupt Time	time of executing OnSkillStopping()	Required
Exit Time	time of executing OnSkillExiting()	Required
Body Effects	Some Effects that may be played on the character during the execution of this skill	Not Required

How to create a Skill Node?

SkillNode can only be created in a NodeLib.

Open Window-> Skill Lib and dock it.

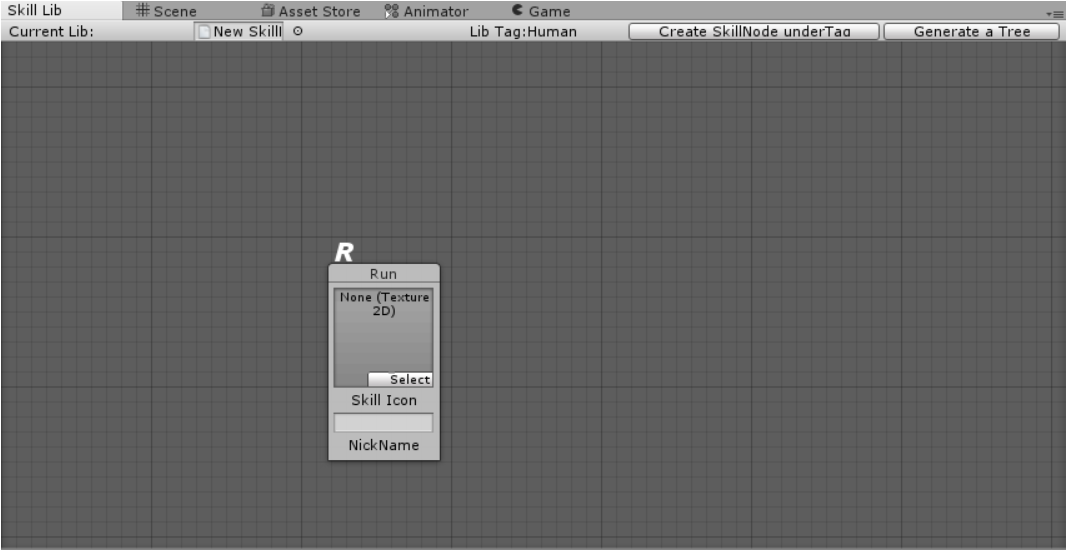

Assumed you already has a NodeLib tagged Human as following.

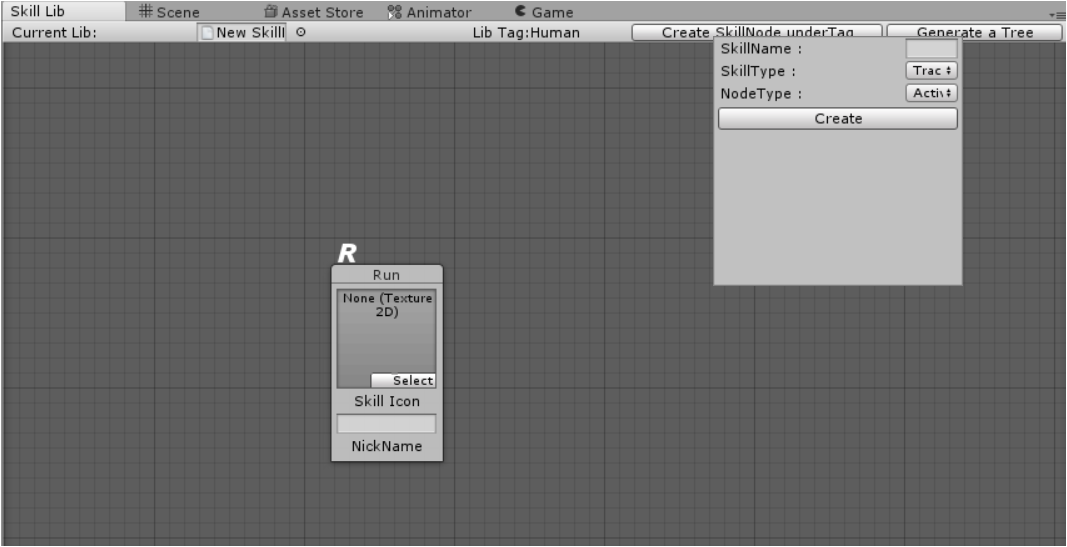

Press Create SkillNode underTag

Set the SkillName , SkillType,NodeType.They can only be setted once.

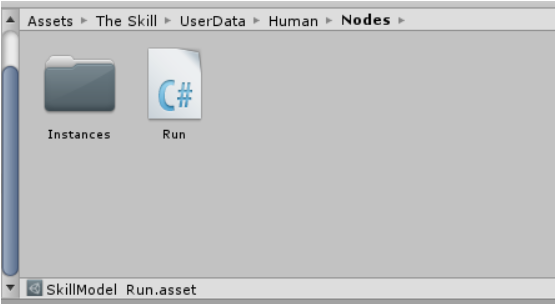

The Node script will be created under the folder

Assets\The Skill\UserData\Human\Nodes with the name Run.cs

The Node object will be created under the folder

Assets\The Skill\UserData\Human\Nodes\instances with the name SkillModel_Run.asset

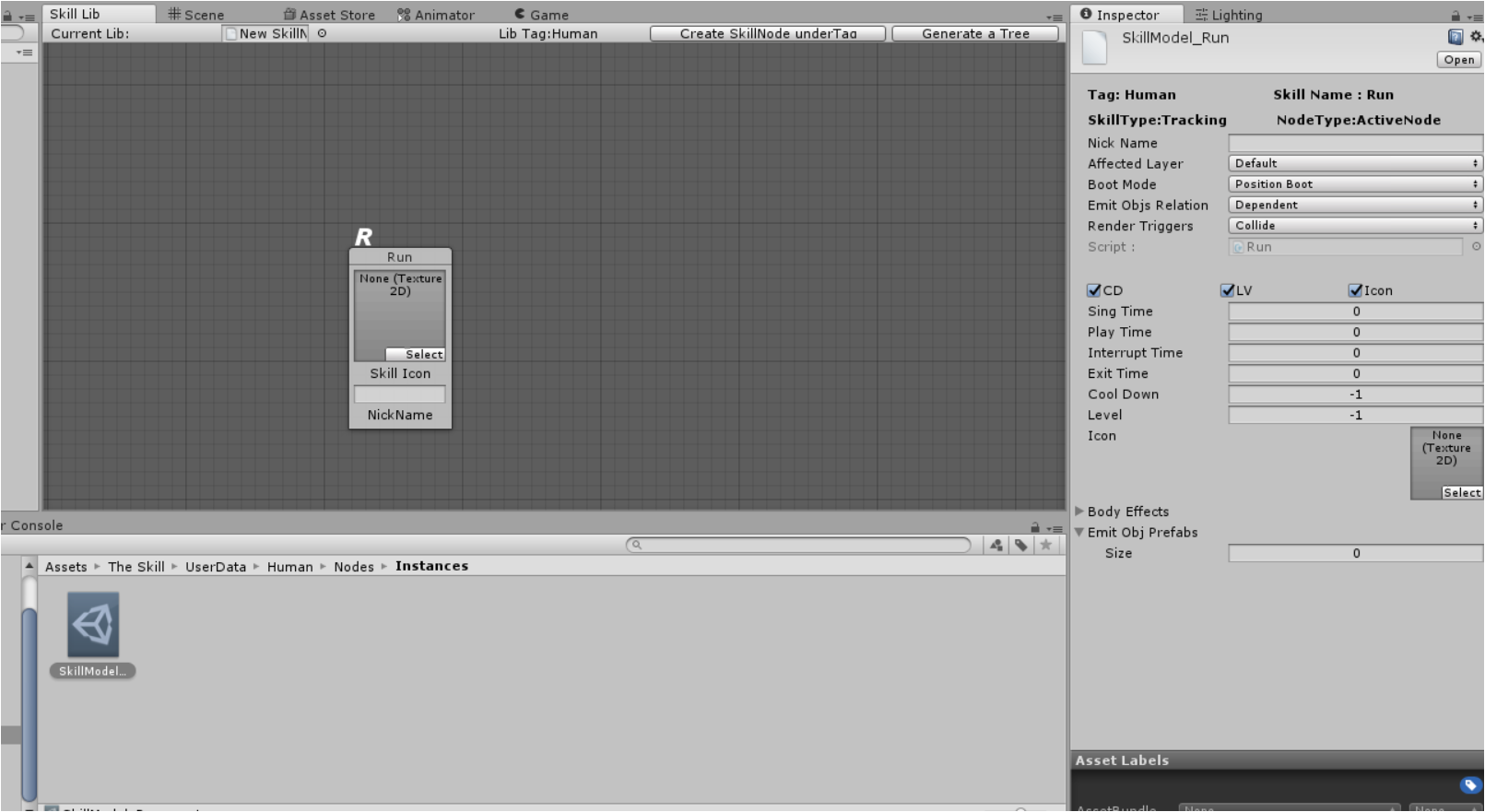

if selected, you can view all the properties in the inspector.

Drag and drop it into the EditorWindow Skill Lib , then the lib will have this node.

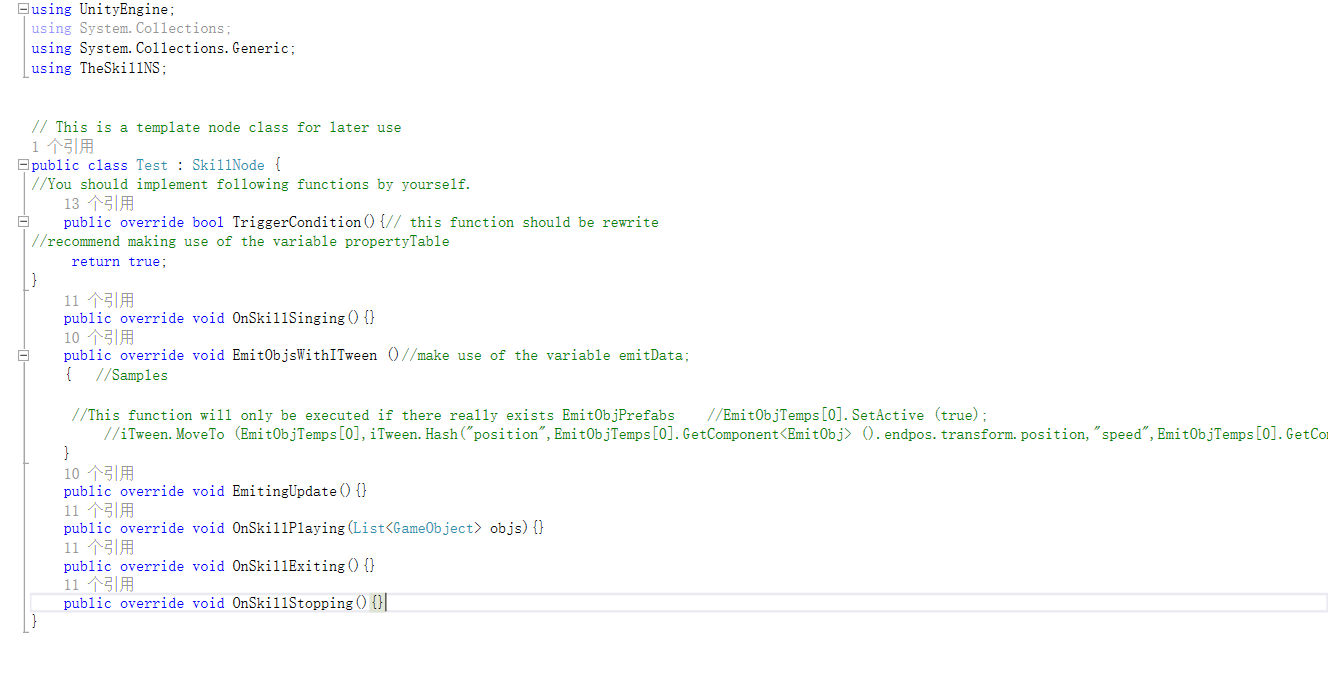

Then we goes to the script.

Currently, Test inherits from SkillNode,which means you have all the functionality above while you can still define how your skillnode Fly look like.

You can add more variables and functions ,get the AttributeTable by attributes(which is already defined in the baseClass), get the gameobject owning this node by attributes.target (then you almost grasp everything you need in your hand),which is quite handy,right?

You’d better rewrite your TriggerConditon(), e.g to detect wheather mana enough for this skill.

Notice you should also implement other 5 functions.

I would talk about EmitObjsWithITween().This function will be called once to emit EmitObjTemps, i recommend using ITween as it’s powerful and simple enough.

Ever the EmitingUpdate() will execute at a fixedUpdate rate as long as none of the EmitObjTemps are triggered.

Also i hope you can make use of skillData, which is from SkillEquipManager.PlaySkill(string skName, Hashtable skillData).

This gives you a lot space to determine what other data you required when playing a skill.
