SkillLearningTree && LTNode

SkillLearningTree is a tree that describes the parent-child relation between SkillNodes.It can only be generated from a SkillNodeLib in the NodeLibEditor(Window-> Skill Lib).

A SkillLearningTree can be visualized in the TreeEditor(Window->Skill Tree).

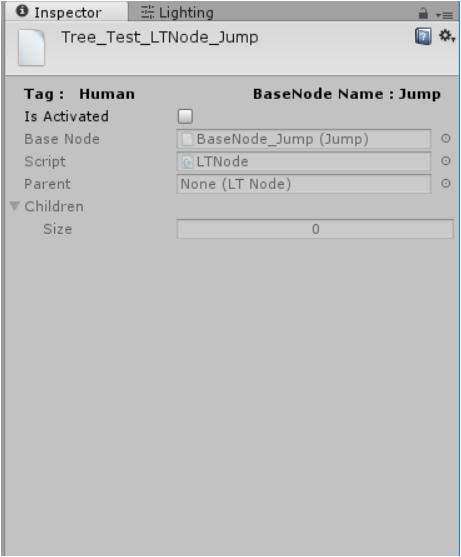

The basic unit of SkillLearningTree is LTNode(i.e. LearningTree Node).

s1517627410420

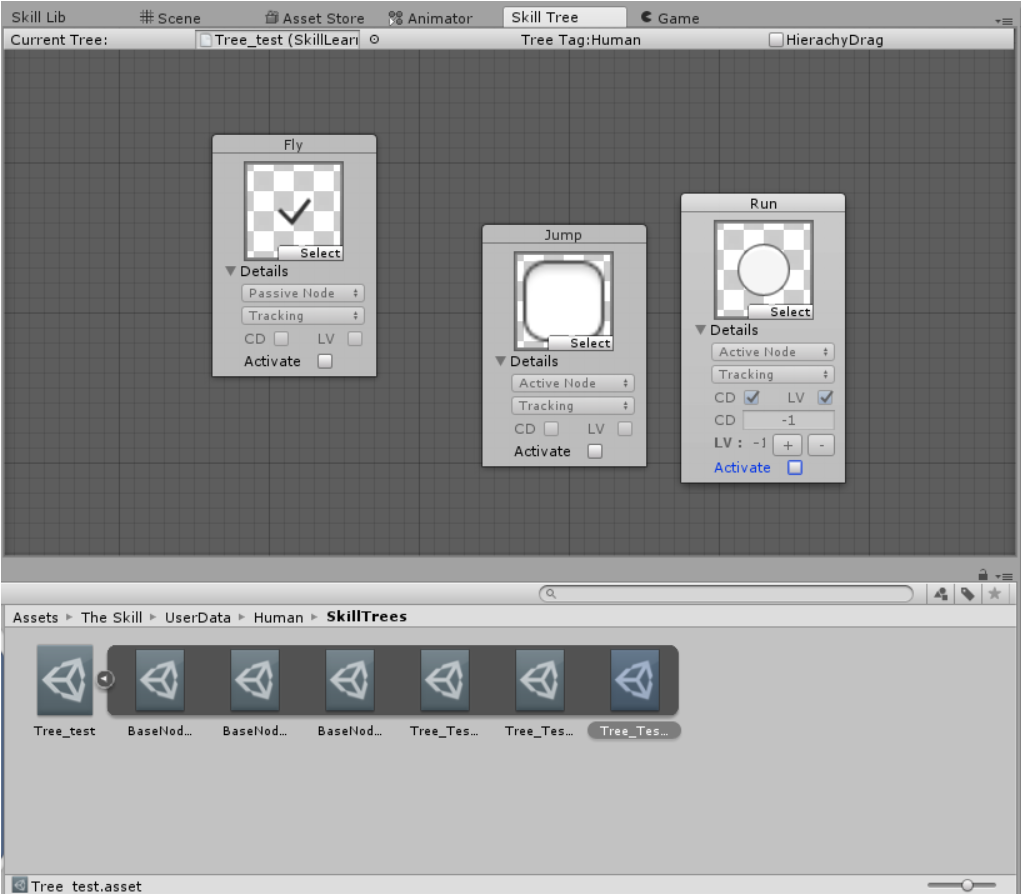

Based onSkillNode,LTNode has parent/child nodes and activate/nonactivate property to descripe wheather a skill has been acquired.

ALTNode can be Activated only when all of its child nodes are Activated.

1517628437759

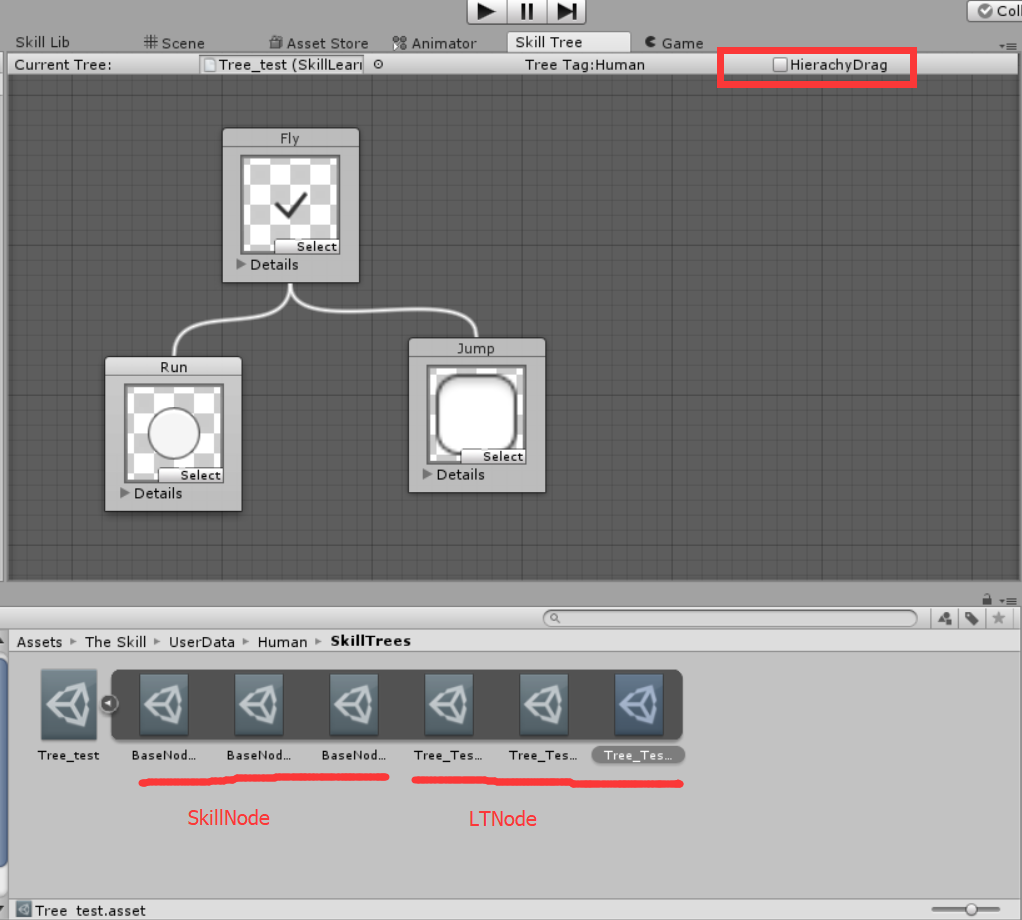

When a tree is generated, it copys all the nodes from the library and saves them as subassets which prevents the data inconsistence over the library when modifying multiple trees from the same library.

The tree will then create LTNodes based on these SkillNodes.

From now on, if you want to modify anything over this tree,you shall not go to the library but only working on your tree asset.

Description: LearningTreeEditor

Now Let’s talk about the Tree Editor Skill Tree.

It has following features:

  • Control+ middle mouse to scale the graph.
  • middle mouse drag to move the graph.
  • click Hierachy Drag to drag a subtree rather than one single node.
  • right click on a node to establish parent-child relation.

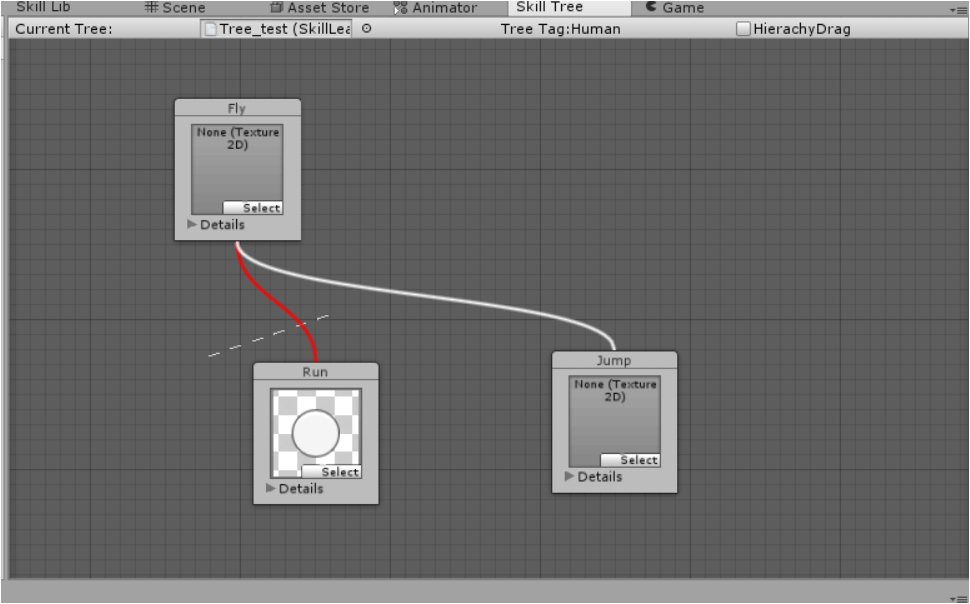

  • control+ right click to break parent- child relations( idea from Shaderforge)
  • Press details to fold out/ in the node window.(It could be more cleaner and tighter).
U1XOXG831NF990X1@93E1
1517890926417

Notice that one SkillLearningTree can only be uniquely assigned for one skill system(The Skill).

If requiring multiple systems to use the same tree, you should make copies of tree and assign to the systems respectively.
